How to turn the MSE Key yourself








**How to turn the MSE Key yourself**

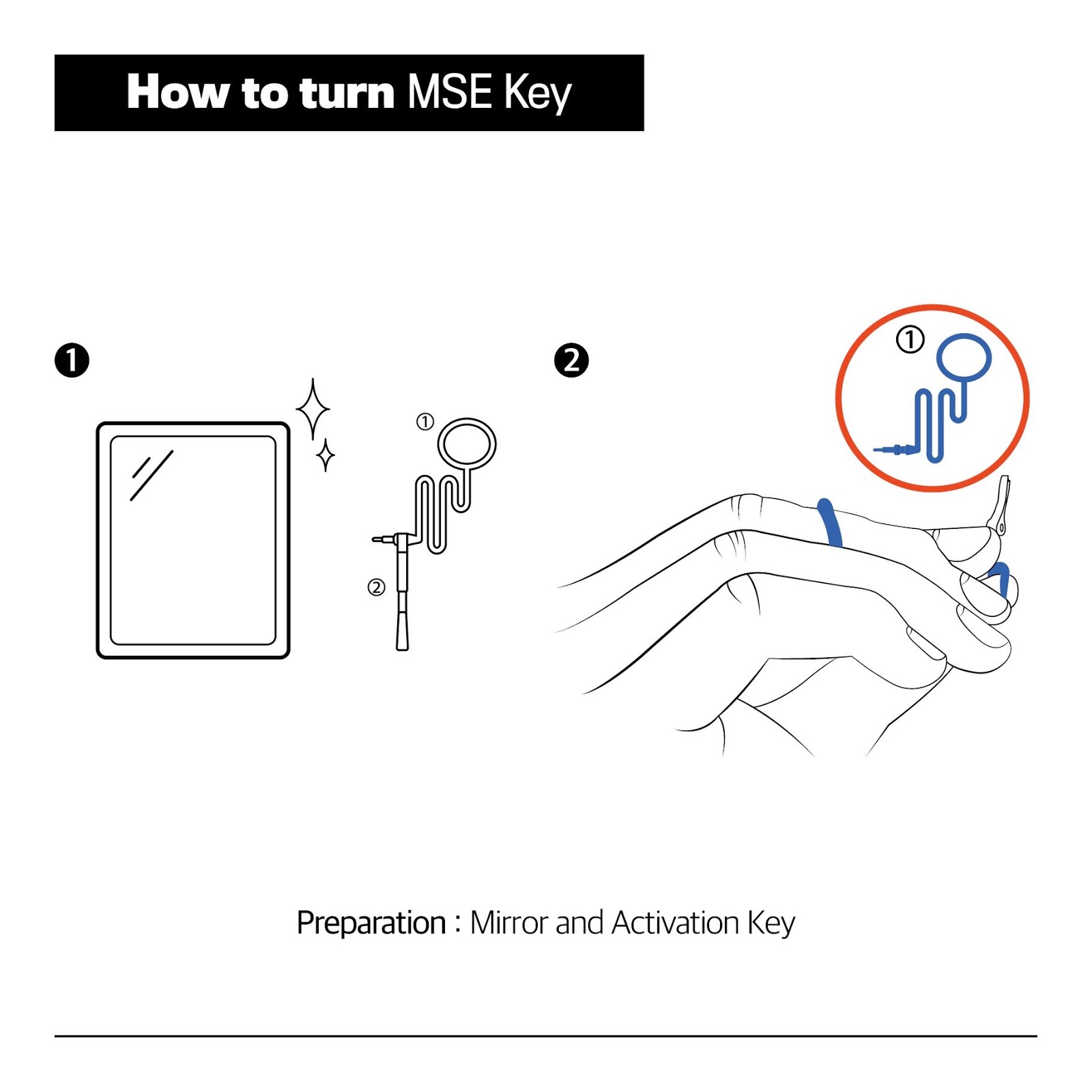

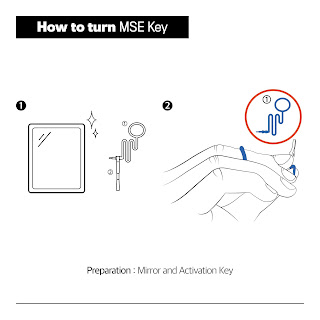

1. Preparation: Mirror and Activation key

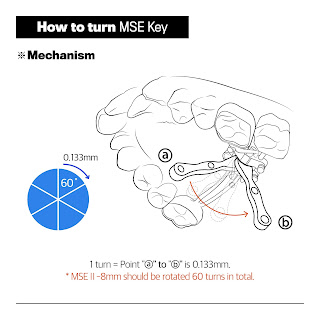

2. Mechanism :

*1turn = point "A" to "B" is 0.133..mm.
ex) MSE2-8mm should be rotated 60 turns in total.

3.Process

(1) Hold the key and engaged it to part "3" of the MSE body.

(2) With them engaged, slide key slowly from A to B in the direction of the arrow.

(3) Separate the key from the "B" point.

4. Precautions

(1). Do not engage the "4" part of the MSE body with the key.

(2) After one turning, don`t separate from the "A" point when removing the key.
(If it is separated from the "A" point, it does not
